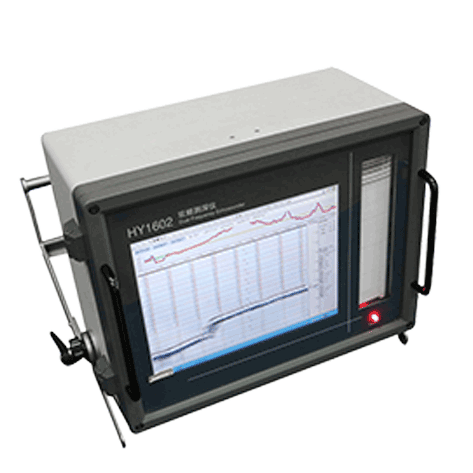

HY1602 Dual Frequency Echosounder
  • Dual frequency with 208 kHz and 24 kHz, double channels

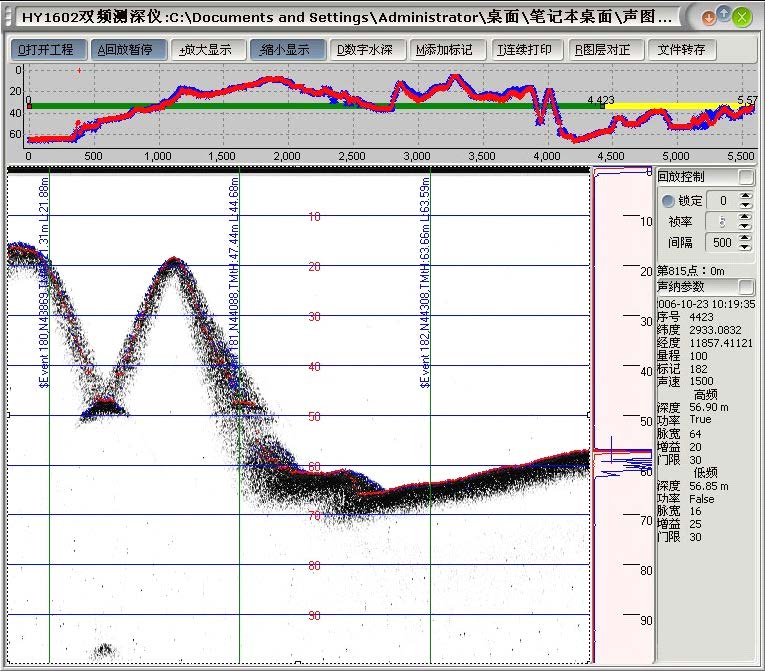

  • Simultaneous output of echogram and chart paper result

  • TVG/AVG dynamic adjustment, reinforced anti- jamming ability

  • Low noise reception, space and time filter adjustment, locked tracking

  • High speed USB interface, huge storage capacity

  • Echogram output for real time display, storage, playback and printing

  • Multi-ports Communications for GPS, motion sensors, etc.

  • Available acquisition software like HYPACK, EIVA

  • High brightness LCD screen and ultra-wide angle of view




Contact Us:

Overseas Sales Manager:

Ms. Jing Chai
+86 15895347296
jing.chai@haiyingmarine.com



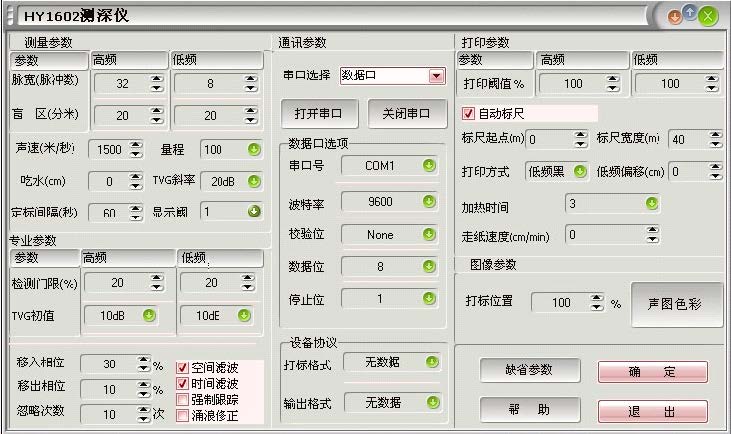

The HY1602 is an all-in-one dual frequency echosounder system that can output both echogram and chart paper results simultaneously. It features digital signal processing and digital imaging technologies, embedded industrial control system and data acquisition software. The survey software can achieve functions of automatic sounding control, intelligent dynamic signal detection, identification, locked tracking and real-time monitoring, which ensures its high reliability and precision. The HY1602 is an advanced and reliable SBE which is extensively used for surveying in the river, lake, ocean and other complex conditions.

Frequency

208 kHz/24kHz

Beam width

≤8°@208kHz, ≤22°@24kHz

Depth range

0.5~300m@208kHz, 1~2000m@24kHz

Accuracy

0.01m ± 0.1% @ 208 kHz , 0.10m ± 0.1% @ 24 kHz

Output power

180W @ 208 kHz, 290W @ 24 kHz

Input power

22-31V DC or 180-260V AC

Consumption

100W

Interface

2 x RS232,4 x USB2.0,1 x VGA,1 x LAN

Recording

Echogram and thermal chart paper

Dispaly

12-inch LCD screen with resolution of 1024×768, Windows XP embedded

Environmental

Operating temperature: 0°-50°C, 5-90% relative humidity, non-condensing

Dimension

400 mm × 200 mm × 310mm (recorder),

400mm × 190mm × 110mm (transducer),

15m (cable length, customizable),

3×1.5m (Mounting pole)

Weight

17.5kg (recorder), 20kg (transducer), 13kg (Mounting pole)
