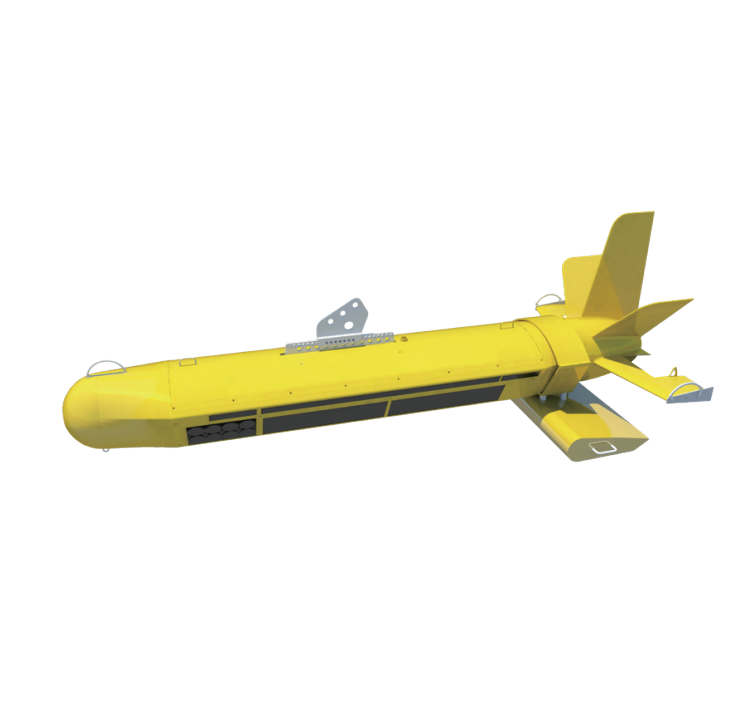

SharkSAS Synthetic Aperture Imaging Sonar

● Adopting advanced synthetic aperture imaging technology that has broken through the resolutionlimit of real aperture,achieving constant high-preci-sion resolution.

●Combining high and low frequency detection tech-nology to achieve efficient detection of suspended,submerged and buried targets simultaneously

● Modular and reconfigurable design enables diversified product structures and suitable for installationon various platforms.


The SharkSAS, based on synthetic aperture imaging  technology, can simultaneously conduct real-time and  efficient detection of underwater suspended, sunken  and buried targets. It has been successfully applied  in fields such as underwater target search and exploration, and inspection of submarine pipelines and cables. While maintaining excellent imaging accuracy and  scanning width, the mapping efficiency can reach 5 to  6 km²/ h.

ModelLow-frequency SASHigh-frequency SAS
Azimuth Resolution                         0.20 m0.08 m
Distance-oriented Resolution0.10 m0.05 m
Max.Detection Width (Single Side) 300m@6kn;150m@12 kn                     300m@6kn;150 m@12kn
Max.Detection Burial Depth7m----
Max.Depth Rating                    1000 m
Max.Operating Speed12 kn12 kn
