● Large area search and salvage
● Cableways&Pipelines surveyHydrographic survey
●Archaeology survey
●Marine resources/mining industry survey
●Searching treasure/sunken ship
●Shipping safety survey
●Harbour safety

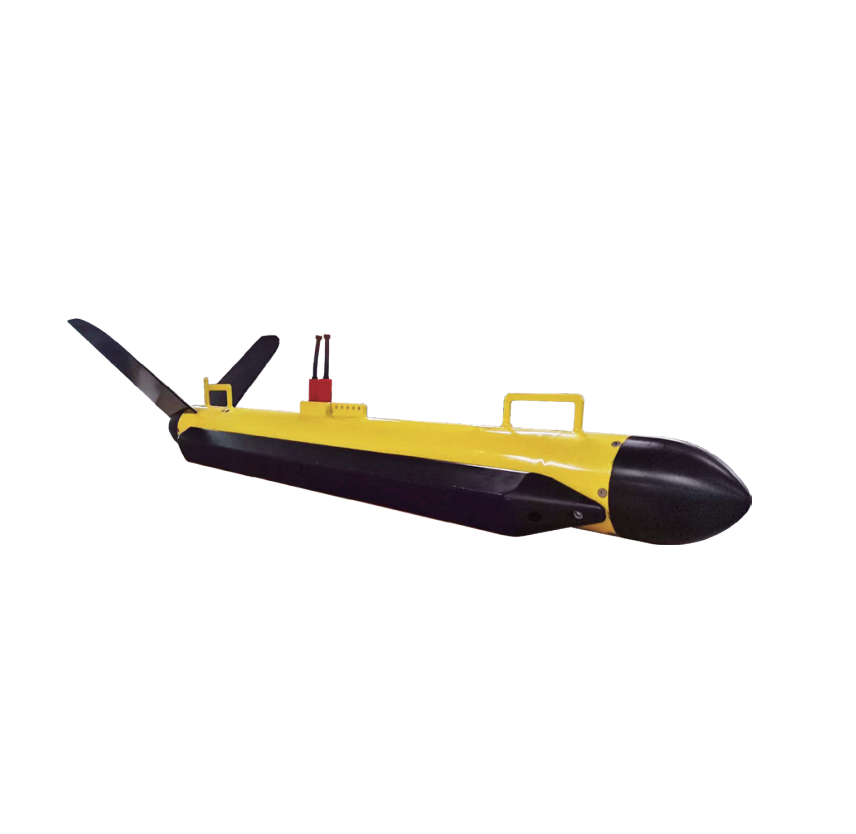

The HY1800-1 side scan sonar integrates full-frequency spectrum and multi-pulse technology. Through CW pulse transmission mode and advanced wideband Chirp signal processing technology in combination with a unique algorithm, the HY 1800-1 provides the ultra-wide range and high-resolution seabed images. A higher resolution can be achieved by extending the array by 100cm. The HY1800-1 side-scan sonar can be normally deployed and recovery under sea conditions no greater than level 4. At a speed of 6 knots, the effective coverage width of the detection is no less than 850 meters with the scanning efficiency is no less than 9 kilometers per hour. It is highly suitable for surveys of various shallow and deep water areas.
| Parameters | |
| Frequency | 100 kHz@low frequency,500 kHz@high frequency |
| Max Range (Slant Distance) | 510 m@low frequency,160 m@high frequency |
| Horizontal Beam Angle | 0.9°@low frequency,0.2°@high frequency |
| Vertical Beam Angle | 50° |
| Range Resolution | 3.70 cm@low frequency,1.20 cm@high frequency |
| Tow Cable and Winch | Meeting the requirement of 6 knots speed towing,the weight of the winch and armored tow cable:48kg (standard towing cable is 120m)and the length can be configured as needed. |
| Dual-frequency ProcessingSoftware | The Chinese interface,featuring functions of real-time image embedding and target object measurement,the function of target marking which can remind and compare typical targets,functions of storing,managing and deleting target information and the function of loading electronic charts. |
| Wet end Parameter | |
| Dimension | 1280 mm x135 mm |
| Weight(In Air) | 34.5 kg |
| Pressure Resistance Depth | 250 m |
| Sensor Configuration | Bow and roll sensor Pressure sensor Temperature sensor |
| Deck Unit | |
| Collection Processing Station | Reinforced 15.6 inch display terminal |
| Operation System | Windows 7 |
| Power Supply | 220 V,300 W |
