The PLS product is a family of portable parametric sub-bottom profilers, which uses single-beam parametric technology for sub-bottom profiling exploration and accurate water depth survey.
The PLS provides optional primary frequencies including 100kHz, 200kHz, and 300kHz. The range of secondary frequencies is wide, and real-time data for bathymetry and sub-bottom profiling can be both acquired.
The standard hulls are 2000m and 6000m depth rated, it also can be customized, small form factor, and portable, which is suitable for integration into ROV and AUV.

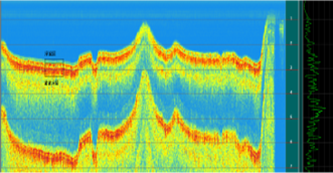

Raw date replay of oil pipe detection 2~3m water depth of waterway in Zhejiang
Contact Us:
Overseas Sales Manager:
Ms. Jing Chai
+86 15895347296
jing.chai@haiyingmarine.com
Specifications | PLS-100 | PLS-200 | PLS-300 |
Primary Frequency | 85 – 115 kHz | 180 – 220 kHz | 270 – 330 kHz |
Secondary Frequency | 5 – 25 kHz | 10 – 35 kHz | 10 – 35 kHz |
Pulse Lengths | 0.05 – 1ms | 0.05 – 1ms | 0.05 – 1ms |
Pulse Type | CW,CHIRP optional | CW,CHIRP optional | CW,CHIRP optional |
Ping Rate | Up to 10 pings/s | Up to 10 pings/s | Up to 10 pings/s |
Output Power | ＞3 kW | ＞3 kW | ＞3 kW |
Output Power | ~ 5 deg | ~ 3.8 deg | ~ 3.6 deg |
Beamwidth-secondary | 5 – 6 deg | 4 – 5 deg | 3 – 4 deg |
Primary Frequency Source Level | >240 dB/uPa @ 1m 100Khz | >240 dB/uPa @ 1m 200Khz | >240 dB/uPa @ 1m 300Khz |
Difference Frequency Source Level | >196 dB/uPa@1m 20Khz | >196 dB/uPa@1m 20Khz | >196 dB/uPa@1m 30Khz |
Dynamic Range | >110 dB | >110 dB | >110 dB |
Range Resolution | <0.04 m | <0.04 m | <0.04 m |
Penetration Capability | <40m (depends on the sediment and noise) | <20m (depends on the sediment and noise) | <15m (depends on the sediment and noise) |
Effective Range | <150 m | <100 m | <50 m |
Attitude Compensation | Heave correction and compensation | Heave correction and compensation | Heave correction and compensation |
Power Supply | 24VDC / 220V AC to 24VDC | 24VDC / 220V AC to 24VDC | 24VDC / 220V AC to 24VDC |
Power Consumption | Less than 35W | Less than 35W | Less than 35W |
PC Connector | Network port , RS485 to USB | Network port , RS485 to USB | Network port , RS485 to USB |
External Interface | GPS, Attitude sensors | GPS, Attitude sensors | GPS, Attitude sensors |
Transducer Weight | Titanium, 12 kg in air, 6 kg in water | Titanium, 9 kg in air, 5 kg in water | Titanium, 8 kg in air, 4 kg in water |
Transducer Dimension | 415mm (Length) 160mm (Diameter) | 415mm (Length) 160mm (Diameter) | 415mm (Length) 160mm (Diameter) |
Material | stainless steel /titanium, optional | stainless steel /titanium, optional | stainless steel /titanium, optional |
Temperature | 0°C~40°C | 0°C~40°C | 0°C~40°C |
Software | Standard PLS-2016 data acquisition software，customized data format to third-party post processing software，such as SonarWiz etc. | Standard PLS-2016 data acquisition software，customized data format to third-party post processing software，such as SonarWiz etc. | Standard PLS-2016 data acquisition software，customized data format to third-party post processing software，such as SonarWiz etc. |
Control System | Laptop | Laptop | Laptop |
