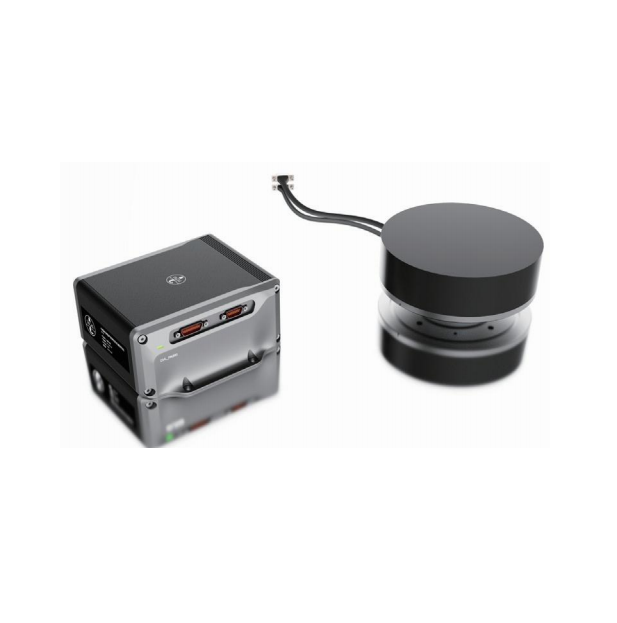

The PA series is a new compact Doppler velocity log. It adopts mature phased array technology and advanced bottom-tracking algorithms, and can be used for acoustic navigation when carried by AUVs or ROVs. The PA series DVL features a split structural design, high precision, small size and light weight, no need for sound velocity calibration, and can be widely applied in marine engineering.
The PA series is a new compact Doppler velocity log. It adopts mature phased array technology and advanced bottom-tracking algorithms, and can be used for acoustic navigation when carried by AUVs or ROVs. The PA series DVL features a split structural design, high precision, small size and light weight, no need for sound velocity calibration, and can be widely applied in marine engineering.
| Model | PA300 | PA600 |
| Acoustic Parameters | ||
| Frequency | 300kHz | 600kHz |
| Configuration | 4 beams,phased array | 4 beams,phased array |
| Beam Angle | 30° | 30° |
| Maximum Distance | 200m | 80m |
| Minimum Distance | 2m | 1m |
| Speed Range | ±18kn | ±12kn |
| Long-term Speed Measurement Accuracy | 0.3%±0.3cm/s | 0.3%±0.3cm/s |
| Environment Parameters | ||
| Operation Temp. | -5℃~45℃ | -5℃~45℃ |
| Storage Temp. | -40℃~60℃ | -40℃~60℃ |
| Maximum Working Depth | 500m and 6000m | 300m and 6000m |
| DC Input | 24VDC(18VDC~36VDC) | 24VDC(18VDC~36VDC) |
| Consumption | ||
| Average | 15W | 15W |
| Peak | 80W | 80W |
| Interface | ||
| Communication Interface | RS422 | RS422 |
| Physical Parameters | ||
| Dimension(mm) | φ127x40 (5MPa transducer A type), φ135x50(60MPa transducer D type), 121x125.5×54(processorrH type) | φ75×40(3MPa transducer), 中80x50(60MPa transducer), 121x125.5x54(processor) |
| Weight in Air | 2kg(5MPa transducer), 3kg(60MPa transducer), 1kg (processor) | 0.6kg (3MPa transducer), 0.8kg(60MPatransducer), 1kg(processor) |
| Housing Material | Titanium alloy&Polyurethane (transducer), Aluminum alloy(processor) | Titanium alloy&Polyurethane (transducer), Aluminum alloy(processor) |
